Microcontrollers

Since a microcontroller is going to be used, some research is needed.

All the platforms need really to be adaptable for the modding market, so off-the shelf kits were targetted.

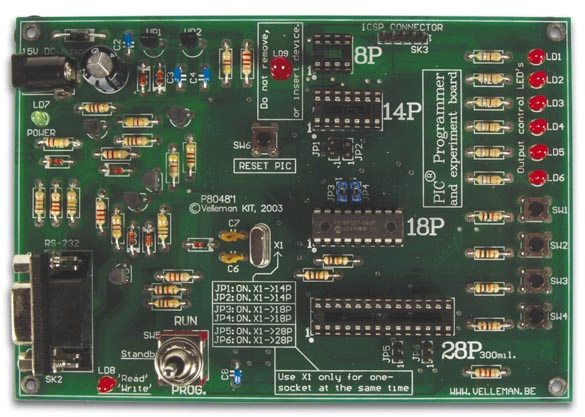

Microchip PIC 16F627A (Velleman K8048)

First tests were done with a PIC

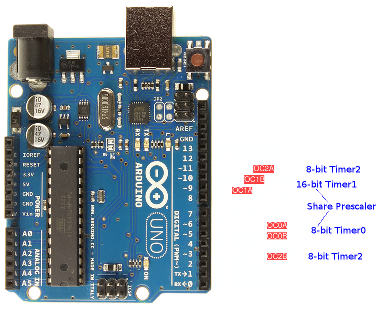

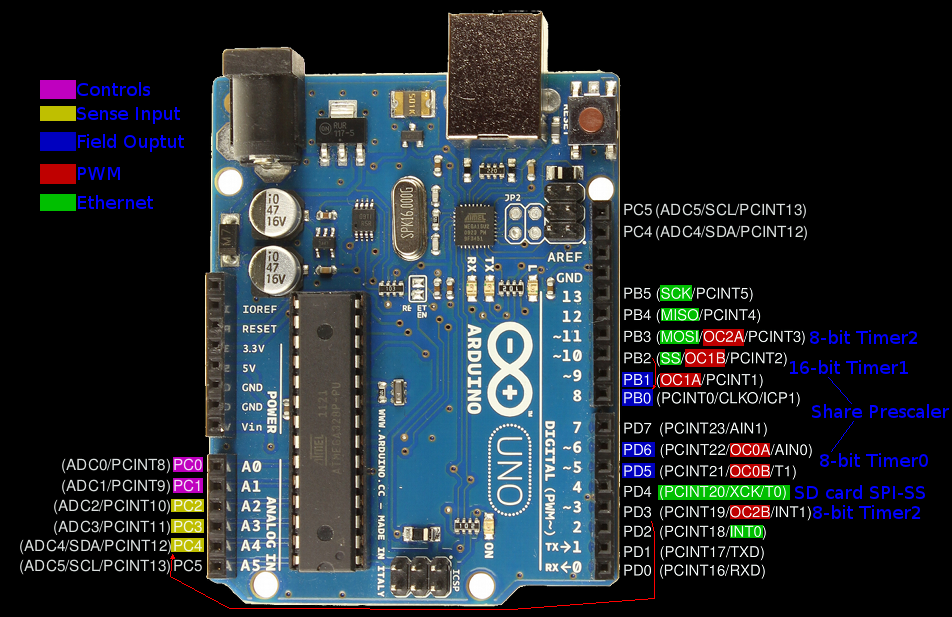

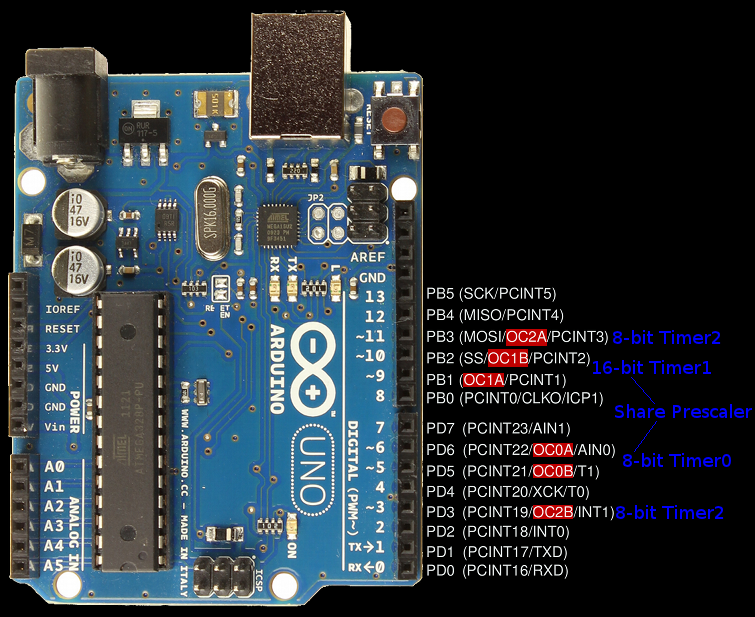

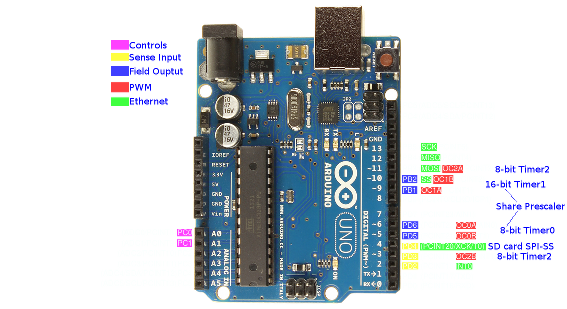

AVR ATMega328 (Arduino Uno)

Then an Arduino Uno was tested



Adding Ethernet

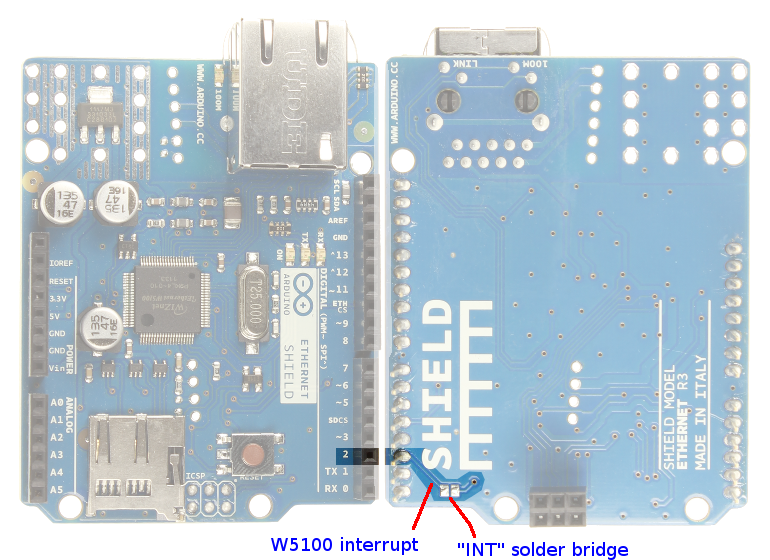

This required some shifting around to allow SPI and W5100 pins to work.

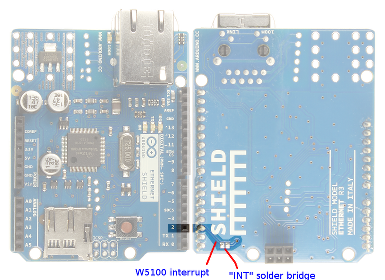

...and to bridge the W5100 interrupt link

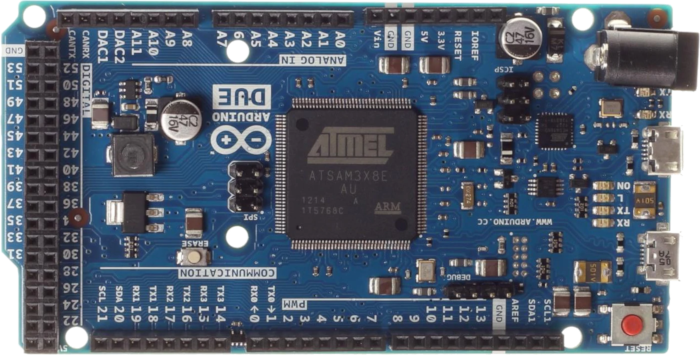

Atmel SAM3X8E/ARM Cortex-M3 CPU (Arduino Due)

This has an 84MHz CPU and hardware accelerated PWM updating as well as alot more IO pins.

Broadcom BCM283x (Raspberry Pi)

Also a Raspberry Pi was tested for a in-car displays due to it's fast OpenGL 3D rendering.

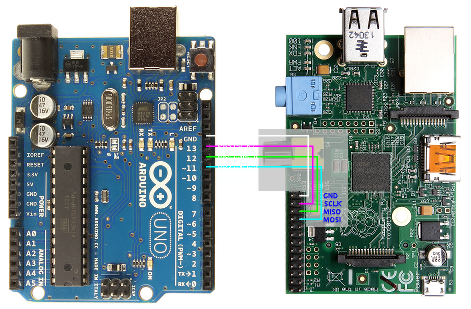

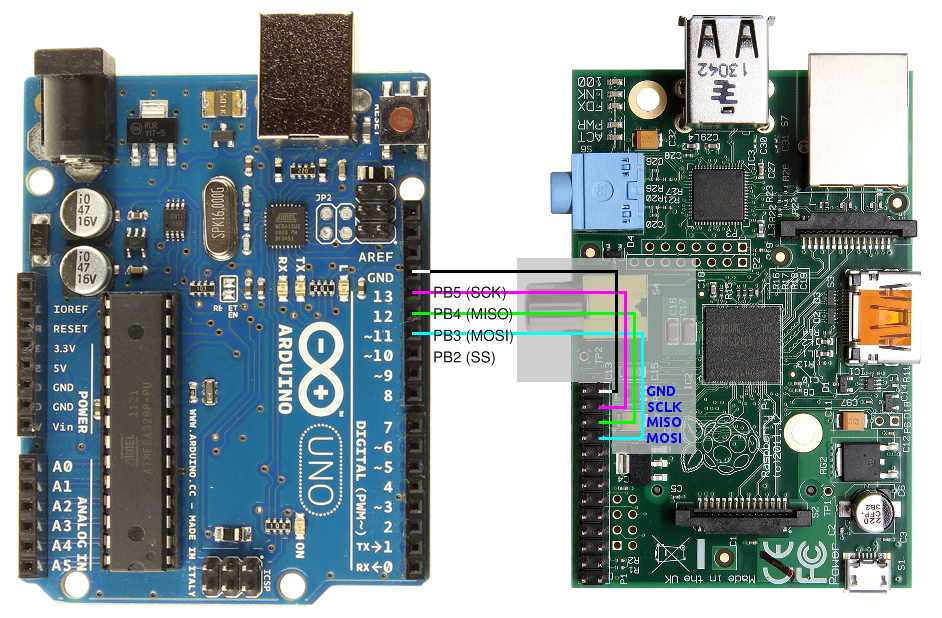

Since both AVR and BCM chips have SPI bus a Arduino<->Pi test was done.

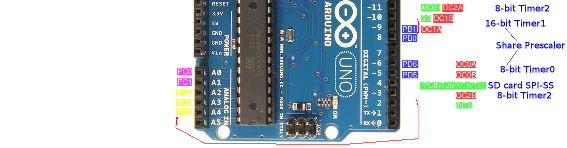

Arduino Uno + MCP3008

ARDUINO AND MCP3008

Github/nodesign/MCP3008

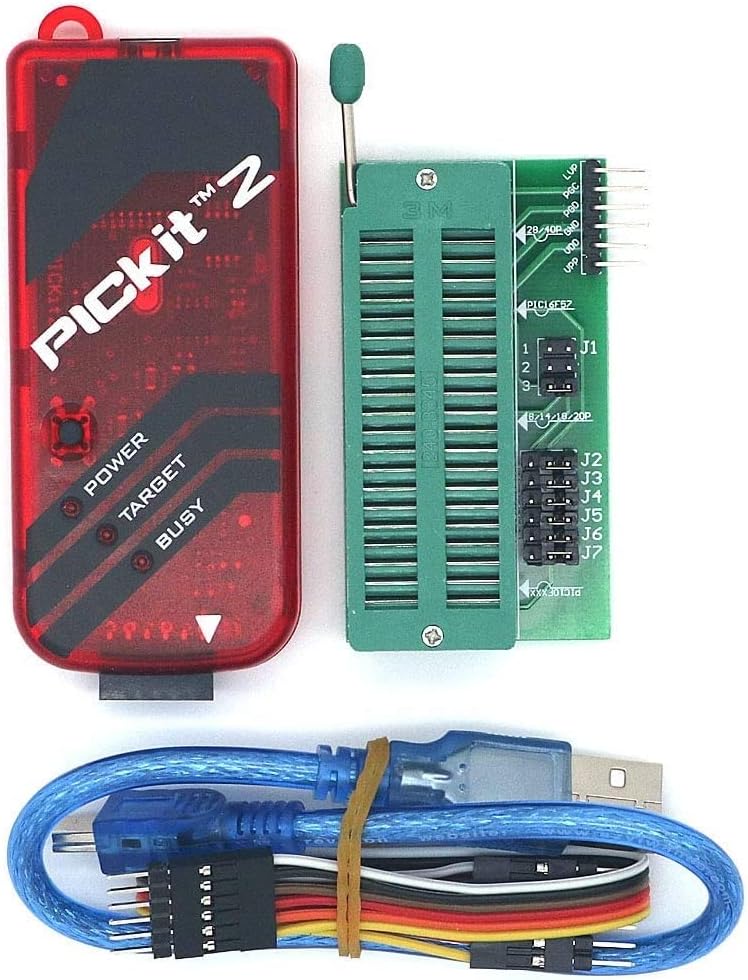

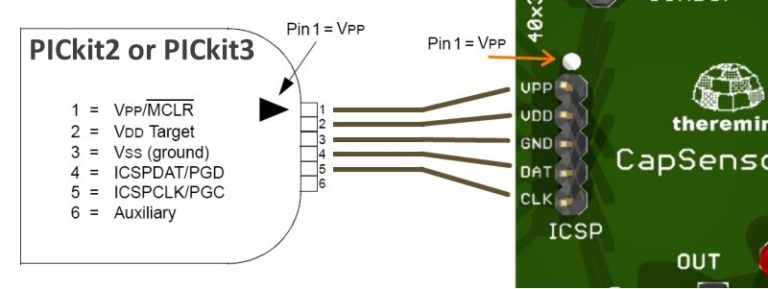

PicKit 2

gputils.sourceforge.io


pk2cmd

#!/bin/bash

gpasm $1 -p 16f628a -o $1.hex &&
make linux &&
./pk2cmd -?V -B./ &&
./pk2cmd -B./ -I -P &&
./pk2cmd -PPIC16F628A -T -A5 -R -J -Z -M -F$1.hex

STM32/STLink



cnc3018-offline-controller | stlink

DIY_STM32_Programmer_(ST-Link/V2-1)

Serial Wire Debug (SWD) | What is PlatformIO?
